3G/4G Modem Setup

GL-X750 has a built-in 3G/4G modem. The Modem installed is a Quectel EP06-A

We recommend to turn off the router first, insert the SIM card, and then turn it on again.

The first time, when the router is powered on, it may not connect automatically, but it has read the name of your carrier in the upper left corner and signal in the upper right corner, you need to click Auto Setup.

After a while, it will be connected.

Normally, the second time, when the router is powered on, after a while, it will automatically recognize the SIM card and establish a connection.

If you insert a SIM card at power on, it will not automatically connect. You can click "Modem Reset" and then click "Auto Setup" and wait for a while, so that you can also connect normally.

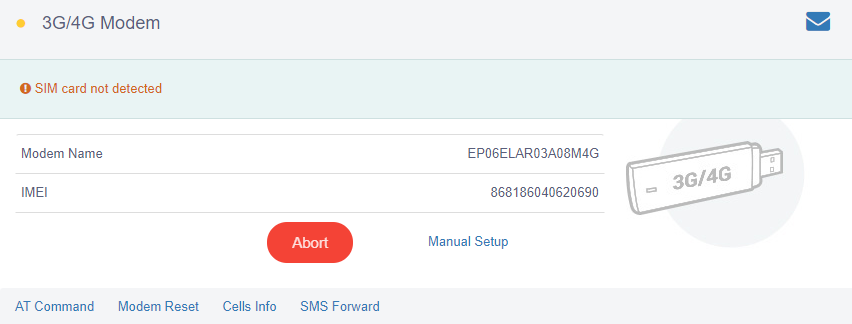

1. Click Modem Reset. Please note that at this time, there isn't show your carrier name in the upper left corner.

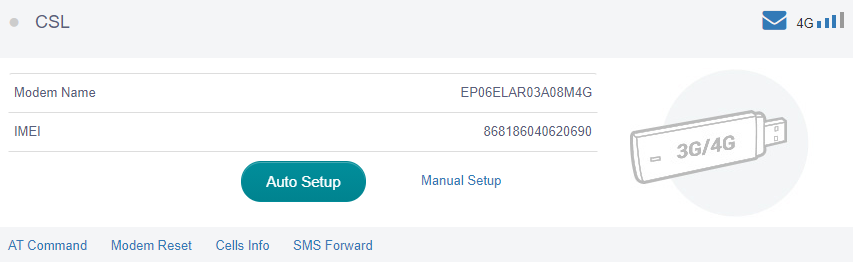

2. You may get into this screen, then you need to click Auto Setup. Please note that at this time, there is your carrier name in the upper left corner and a signal in the upper right corner of it.

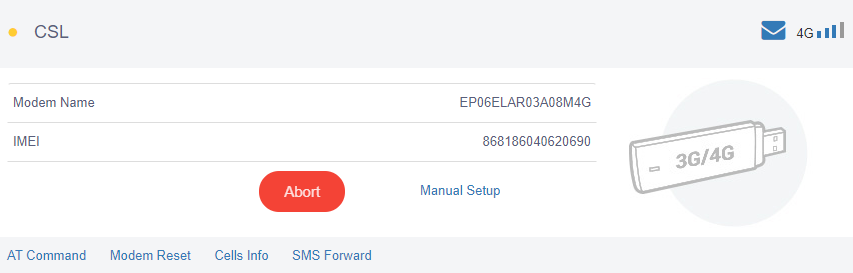

3. Wait a moment, it will be connecting(the button is Abrot).

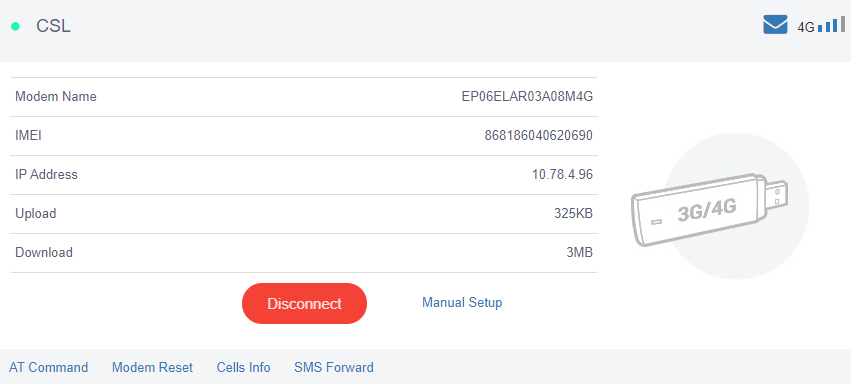

   Wait a little longer, it will be connected(the button is Disconnect).
