Power off the device by unplugging the POE block's AC/ power cable from power outlet. See below picture of an example POE Injector :
Unscrew the SIM cover from the bottom of the Outdoor Ridgewave Antenna to expose the SIM card securing mechanism/ sim card slot.

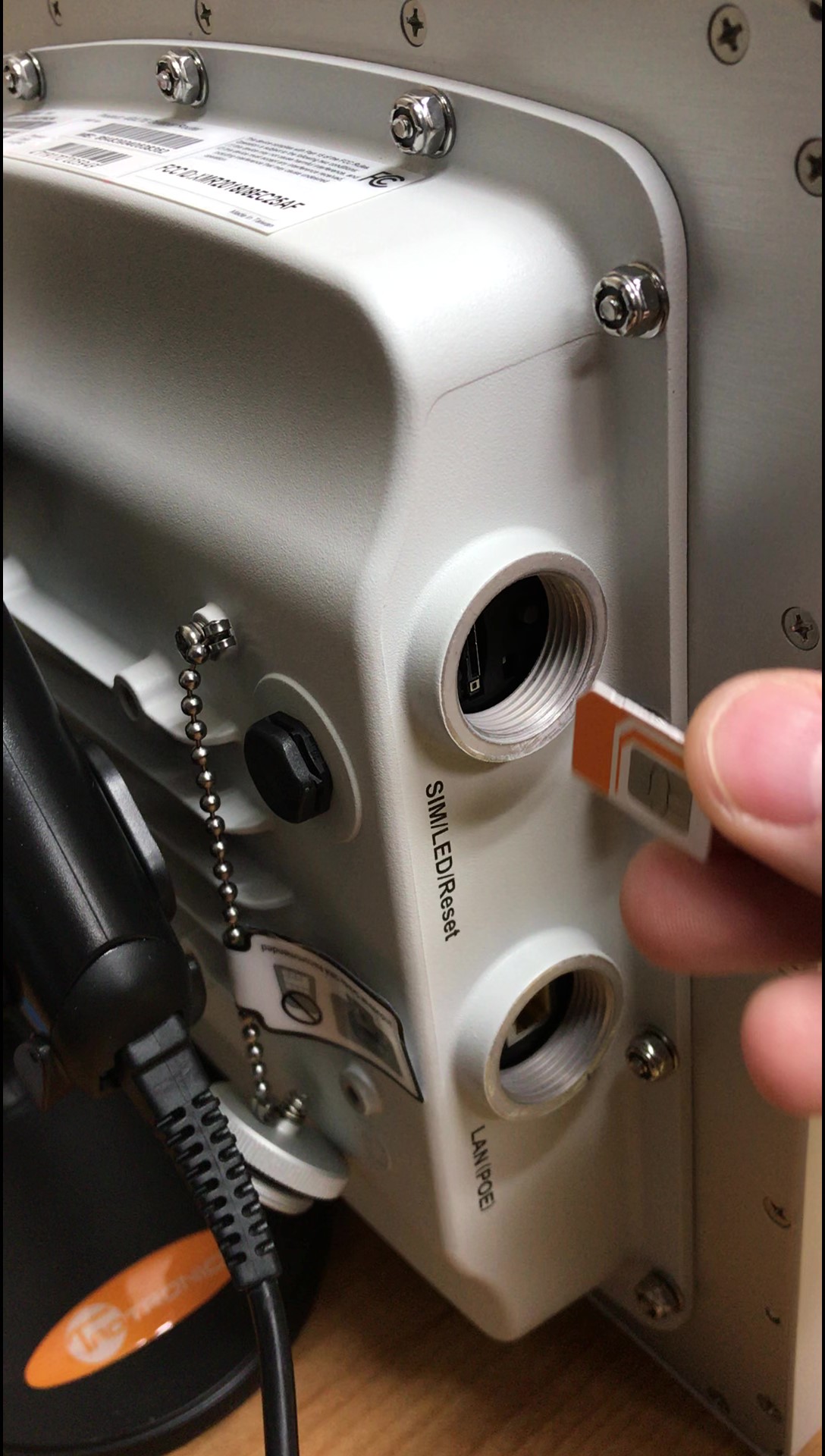

Place the standard size SIM card in place with the metal pins faced back, and the wedge facing the top of the modem. (USE A SIM ADAPTER IF YOU DO NOT HAVE A STANDARD SIZE SIM CARD)
Screw the SIM cover back on to safeguard the SIM slot housing unit.
Plug the AC/ power cable (attached to the POE Injector block) back into the wall outlet.
Ensure the middle AC/power adapter (which attaches the cable to the block) is tight in the POE Injector block's slot.
Ensure the 2 LAN/ CAT5e cables are tight in the LAN outlets on the POE Block.
BEC Ridgewave 6900 SIM Card Installation Print
Created by: Nathan Stone
Modified on: Thu, 6 Aug, 2020 at 10:12 AM
